Extracting Provenance Information from an Event

In the following, we use a running example to describe how the provenance information is extracted from an event.

Step 1 - Receiving an Event

After starting the provenance builder, it will listen by default under localhost:5000/capturer/process-event for incoming events. An event represents a specific action or occurrence within a software system that is relevant for capturing provenance information. It contains key-value pairs that provide details about the event, such as what action was performed, where it occurred, and additional context related to the action.

Here’s an example of describing an event:

{
    "type" : "Experiment Executed",
    "executed_experiment" : "~/study/experiment.py",
    "experiment_specification" : "...",
    "with_model" : "~/study/my-model.mlr",
    "generated_data" : "~/study/exp1-results.csv",
    "tellurium_version" : "2.2.10",
    "model_specification" : "..."
}

Step 2 - Applying the Corresponding Rule

When an event is received, it is processed according to the rule defined for its type. This processing involves matching the event type to the corresponding rule function specified in the rule set. SimProv then executes the rule function associated with the event type, passing the event data as input.

The rule function extracts relevant information from the event data and constructs a provenance activity object, which represents the modeler’s activity in the simulation study. This activity object includes entities, such as simulation models or data files, along with their attributes, and may also include agents responsible for the activity.

Once the activity object is constructed, it is returned by the rule function and used to update the provenance graph.

Here’s an example of an rule for the event shown above:

from pathlib import Path
from simprov import Activity, Entity, rule

# Auxilary function extracting the file name from a file path
def file_name_from(path):
        return Path(path).name

# Rule function for events of type "Experiment Executed"
@rule("Experiment Executed")
def process_experiment_executed_event(event:dict)-> Activity:
        activity = Activity("Executing Experiment")

        experiment = Entity("Experiment")
        experiment_path = event["executed_experiment"]
        experiment["File Path"] = experiment_path
        experiment["Name"] = file_name_from(experiment_path)
        experiment["Specification"] = event["experiment_specification"]

        model = Entity("Simulation Model")
        model_path = event["with_model"]
        model["File Path"] = model_path
        model["Name"] = file_name_from(model_path)
        model["Specification"] = event["model_specification"]

        data = Entity("Data")
        data_path = event["generated_data"]
        data["File Path"] = data_path
        data["Name"] = file_name_from(data_path)
        data["Content"] = event["data_content"]

        tel = Agent("Tellurium")
        tel["Version"] = event["tellurium_version"]


        activity.entities_used = [model, experiment]
        activity.entities_generated = [data]
        activity.agents_associated = [tel]

        return activity

Warning

If an event type does not have a corresponding rule function defined, the event is rejected and added to the error log, ensuring that all events are processed consistently and accurately.

Step 3 - Match against the Provenance Pattern

Finally, SimProv verifies the extracted provenance activity against the provenance patterns. If any attribute values are missing or invalid entities/agents are assigned, the activity is logged as an error. Otherwise, it is chained with the existing provenance graph.

To ensure chaining with the latest nodes, SimProv maintains an internal graph representation and a mapping for retrieval. When a new activity is added:

1. A new node is created for the activity.

2. Connections are made to nodes representing entities used and agents associated.

3. New nodes for generated entities are created and linked, updating the mapping.

If an entity or agent cannot be resolved, it is directly added to the graph and mapping.

Here’s an example of a provenance pattern corresponding to the Executing Experiment activity:

# Entities
Simulation Model:
    attributes:
        - File Path$
        - Name!
        - Specification

Experiment:
    attributes:
        - File Path$
        - Name!
        - Specification

Simulation Data:
    attributes:
        - File Path$
        - Name!
        - Content

# Agents
Tellurium:
    attributes:
        - Version$

# Activities
Executing Experiment:
    usage:
        - Simulation Model
        - Experiment
    generation:
        - Simulation Data+
    association:
        - Tellurium

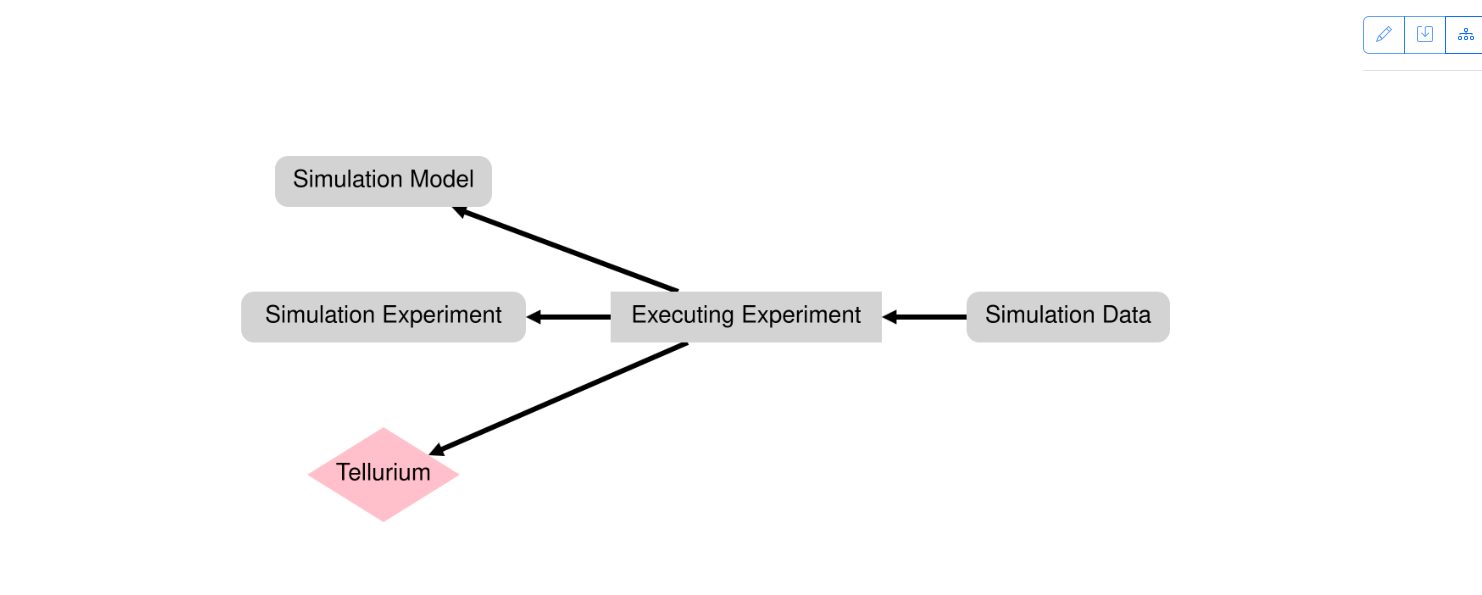

Extracted provenance graph from the event.
